Create a Minified Signature Plot with Proportion Bar

Source: R/minisig.R
sig_visualise_minified.Rd

Generates a compact visualization of a signature plot with a proportion bar underneath.

Usage

sig_visualise_minified(
  signature,
  proportion,
  format = fmt_percent(),
  fgcol = "maroon",
  bgcol = "grey90",
  text_size_prop_label = NA,
  heights = c(0.85, 0.15),
  textcol = "black",
  textcol_inverted = "white",
  proportion_inversion_point = 0.5
)

Arguments

signature

A sigverse style signature data.frame.

proportion

Numeric value between 0 and 1 representing the proportion to display.

format

Function to format the proportion label. Defaults to fmt_percent(). Most common alternative is to use fmt_round().

fgcol

Color for the foreground (proportion) part of the bar. Defaults to "maroon".

bgcol

Color for the background (remaining) part of the bar. Defaults to "grey90".

text_size_prop_label

Numeric value for the text size of the proportion label in the bar. Defaults to NA.

heights

Numeric vector specifying the relative heights of the signature plot and proportion bar.

textcol

Colour of proportion label when proportion is less than proportion_inversion_point

textcol_inverted

Colour of proportion label when proportion greater than proportion_inversion_point

proportion_inversion_point

The proportion above which the proportion will be rendered on top of progress bar, not

Value

A combined ggplot object of the signature plot and proportion bar.

Examples

sig <- sigshared::example_signature()

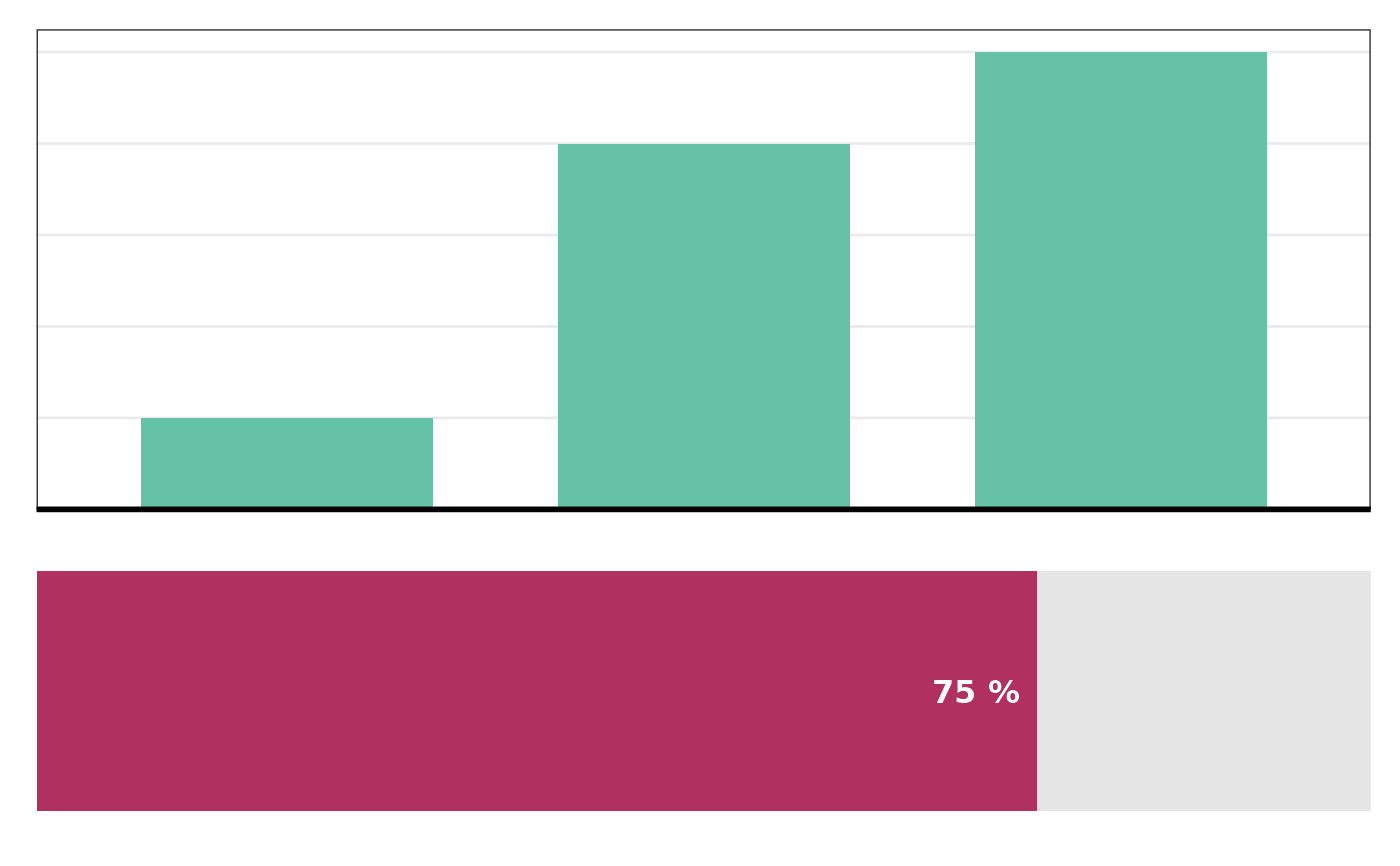

sig_visualise_minified(sig, proportion = 0.75)
#> ! No exact channel set match found, sorting in order of appearance
#> ! No exact type set match found, sorting in order of appearance
#> ! No exact palette matches, returning default. It is highly recommended to supply a custom palette. See the `palette` argument


# Change size ratio between signature plot & bar
sig_visualise_minified(sig, proportion = 0.75, heights = c(0.6, 0.4))
#> ! No exact channel set match found, sorting in order of appearance
#> ! No exact type set match found, sorting in order of appearance
#> ! No exact palette matches, returning default. It is highly recommended to supply a custom palette. See the `palette` argument
